AuthorizationClientDemo

Using the LandSense Federation using a client-side framework

For client-side web applications we are providing a demo using the hello.js JavaScript SDK for authenticating with the federation.

The use case

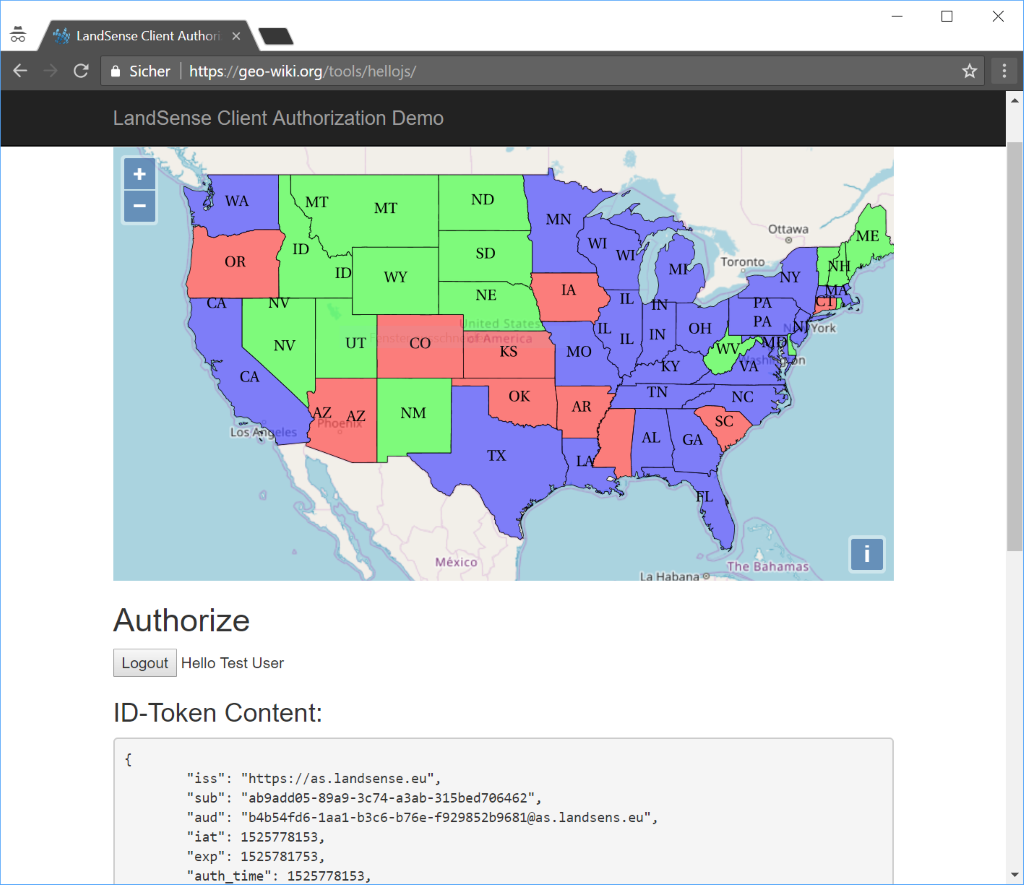

This demo loads a map and allows you to login using the LandSense federation. With the successful login you will receive an access token that is required to request a protected resource from a LandSense service provider, a GeoServer WMS layer (U.S. states) in this case, that is overlaid over the basemap.

See a live demo here.

Client credentials

The demo app uses client credentials from the LandSense Authorisation Server. You might want to replace them with the client credentials of the app you registered. You find the code in the upper part of the js/site.js file.

hello.init({
  landsense: "<YOUR-CLIENT-ID>"
});

---

Components

Third party

Our demo uses some third party libraries to showcase the login and requesting a protected resource, but the only required library is hello.js.

To make this demo work we additionally used:

• JQuery
• Bootstrap
• Openlayers

You find all the includes in the index.html.

js/landsense.js

The hello.js provider to connect with the landsense federation. To use it in your project you can just link it from this github repository.

js/site.js

Handles the user interaction (click on login / logout) and configures hello.js. After a successful login, the AddLayer method in the demoMap.js is called to display the protected layer.

Please note:

The demo only runs on http://localhost:53535/. If you want to test it and run it under some other URL you have to register your application with the LandSense Authorisation Server and get separate client credentials.

js/demoMap.js

Initializes the map with a base layer and provides the functions to add or remove the protected layer. The layer has to send the access token as an additional parameter.

css/site.css

Just some very basic styling for the demo.

---

Additional Info / FAQ

Dealing with query string parameters

The redirect_uri has to match the URL you used when registering your app with the LandSense Authorisation Server. If you are using query string parameters on the page, then the login will fail with a message similar to The redirect URI provided is missing or does not match.

This issue could occur if your application is using query string parameters for navigation. Example: https://mysuperapp.net/?product=4711. Your app will be registered with the redirect url https://mysuperapp.net/ and the error message will appear when trying to login.

To overcome the issue you can simply add an additional parameter called redirect_uri in the login function call:

hello("landsense").login({
  // Define the scopes (here in login, in case also other login providers shall be used)
  scope: "openid profile email landsense",
  // Fix the redirect_uri to the website root
  // Or if you are not working under root you can just use window.location.pathname
  redirect_uri: "/"
}).then(function (p) {
